Discover The Aritco HomeLift

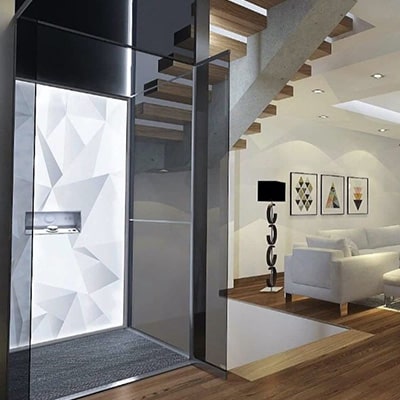

The beautiful Aritco HomeLift (AHL) is designed to be a spectacular feature, making your home unique.
With five platform sizes, from the S5 (for 2 persons) to the S15 (which accommodates a wheelchair and a carer), this luxurious home lift caters to most situations.
Equipped with a SmartSafety system, an emergency lowering facility, and a backup power supply, this Aritco home lift prioritises safety.

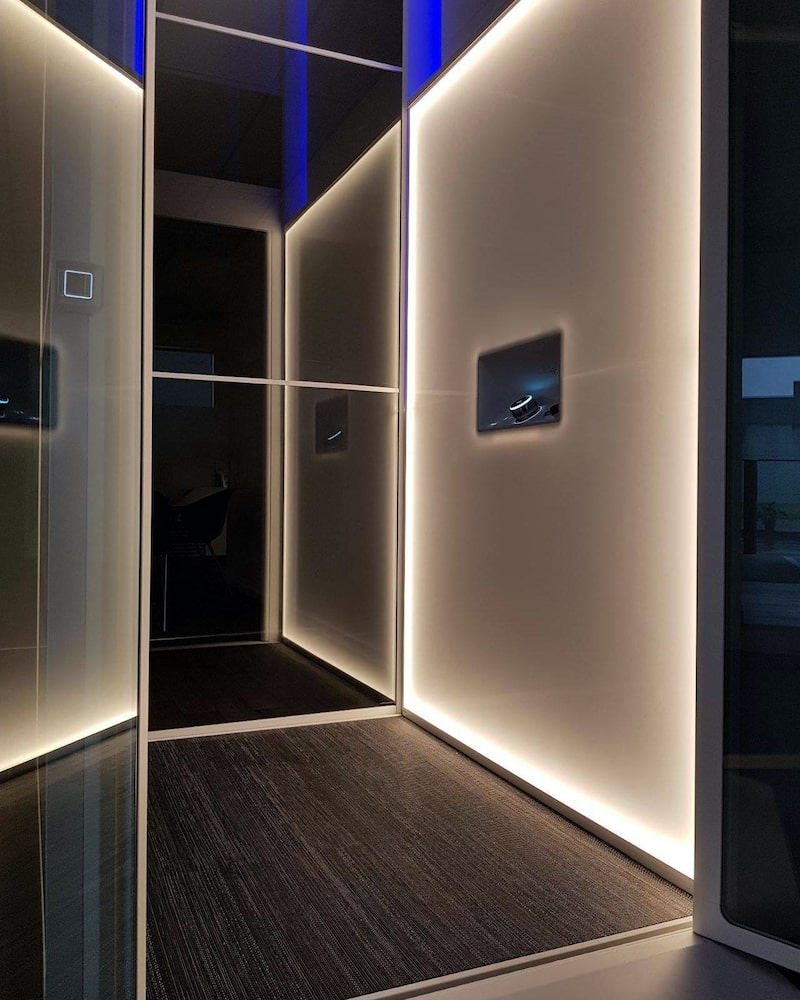

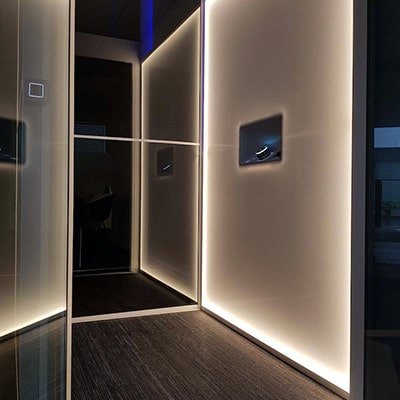

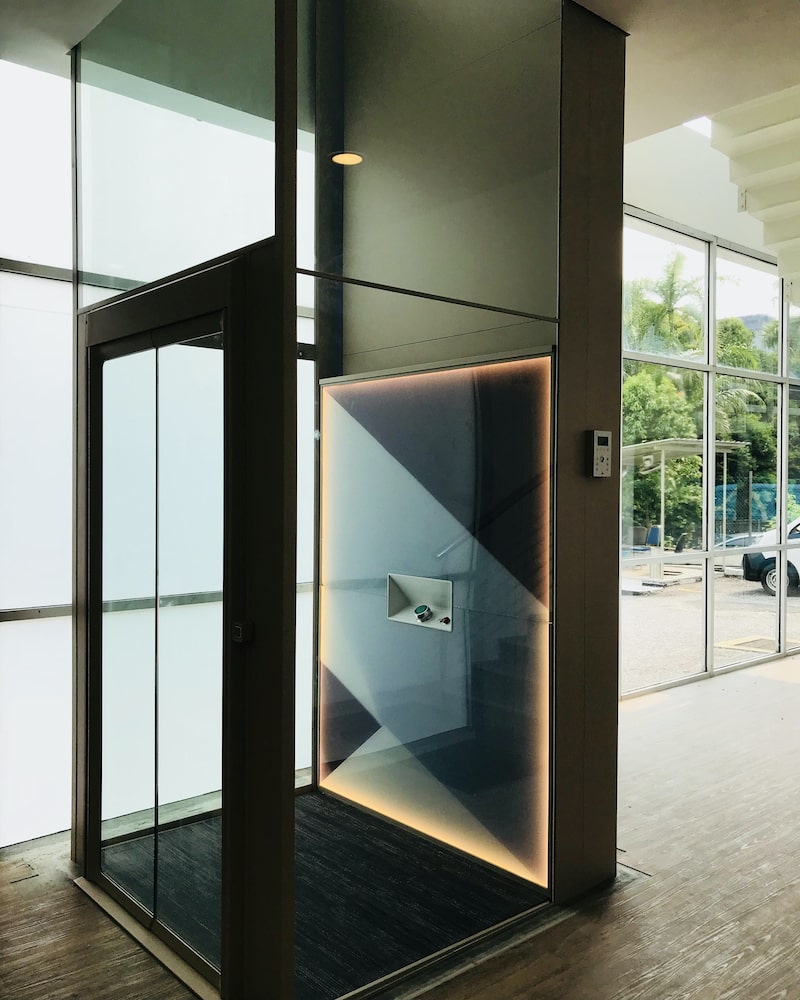

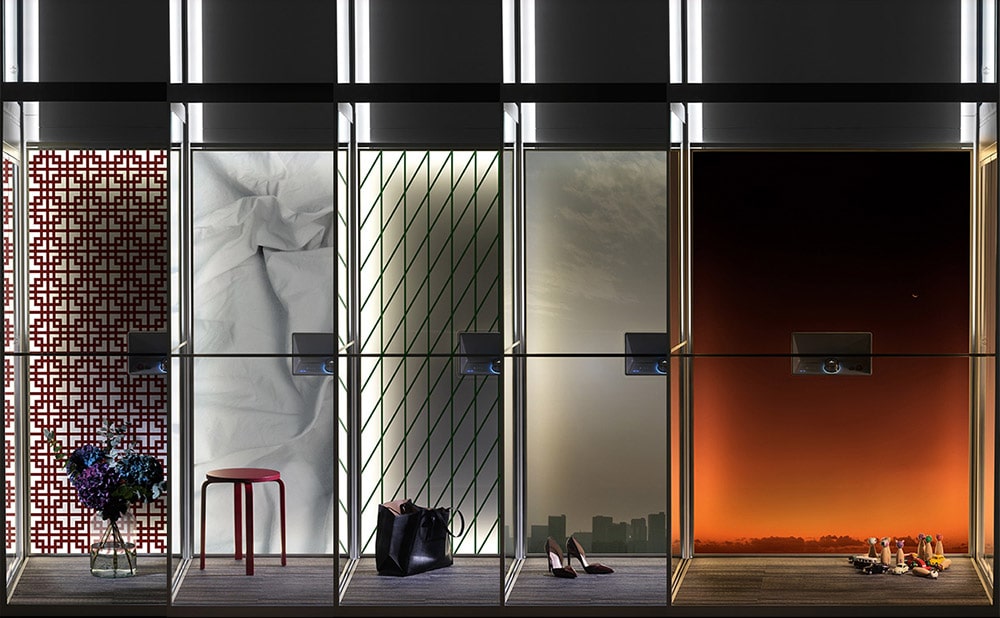

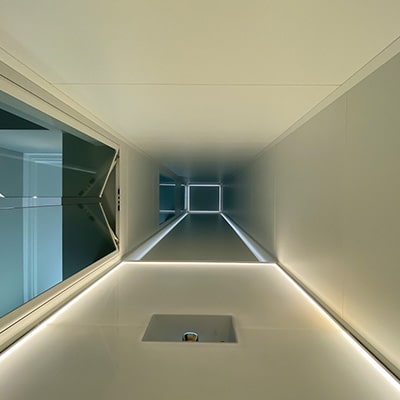

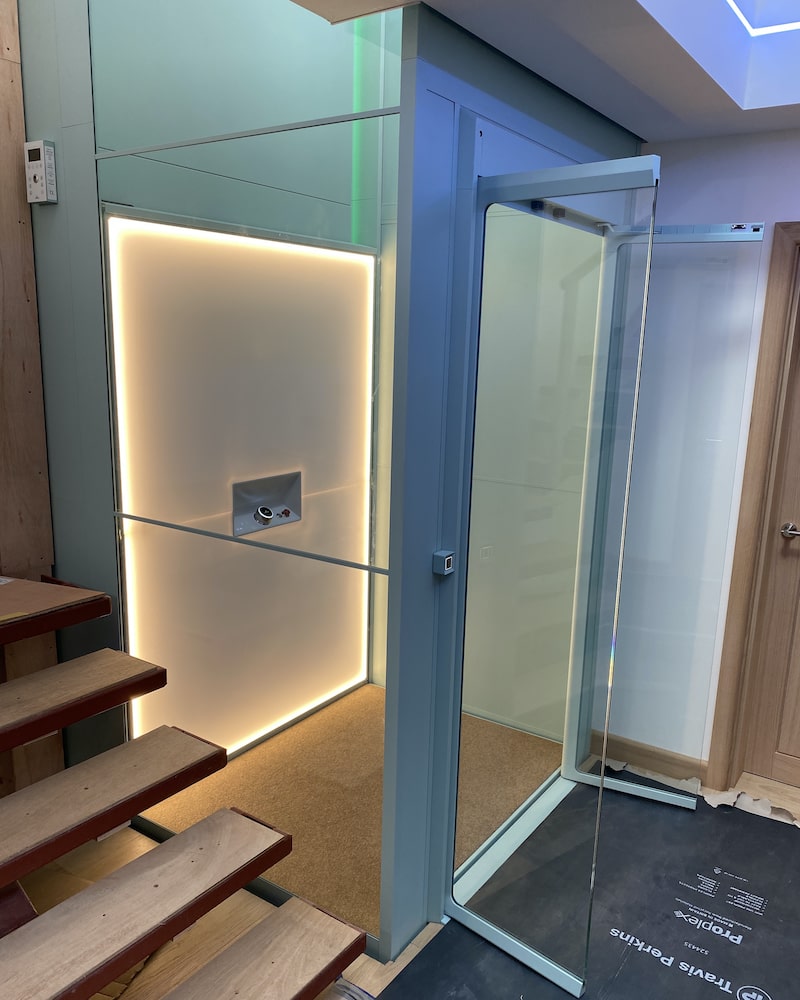

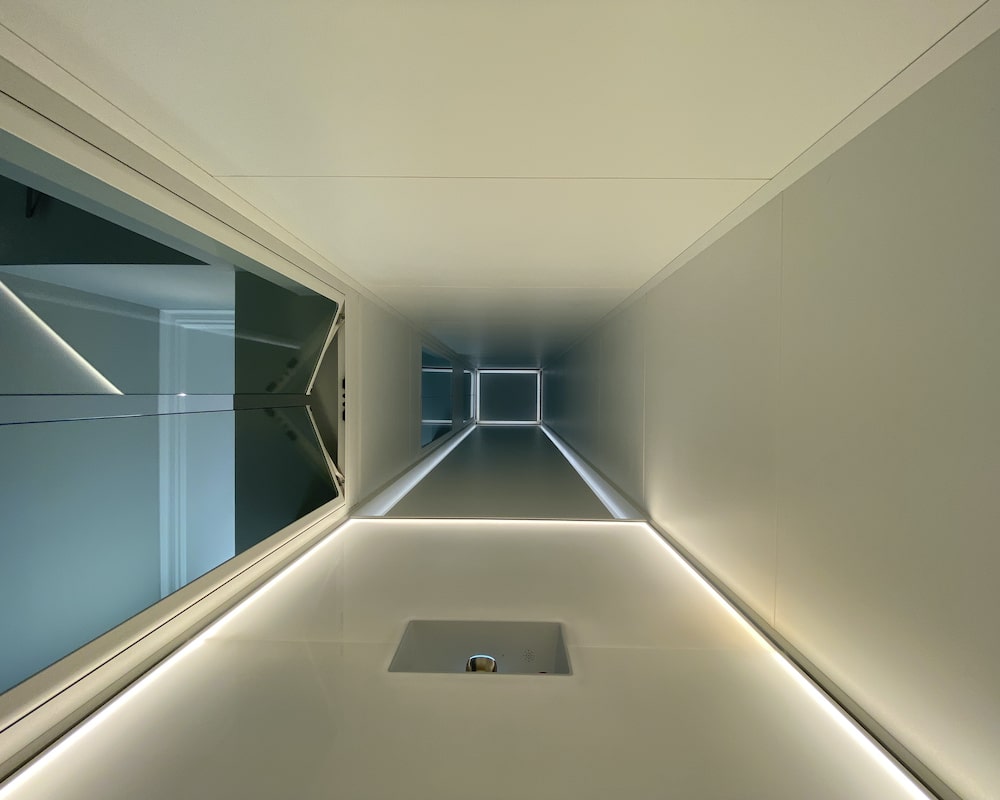

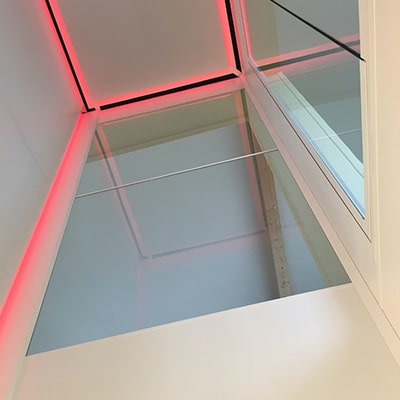

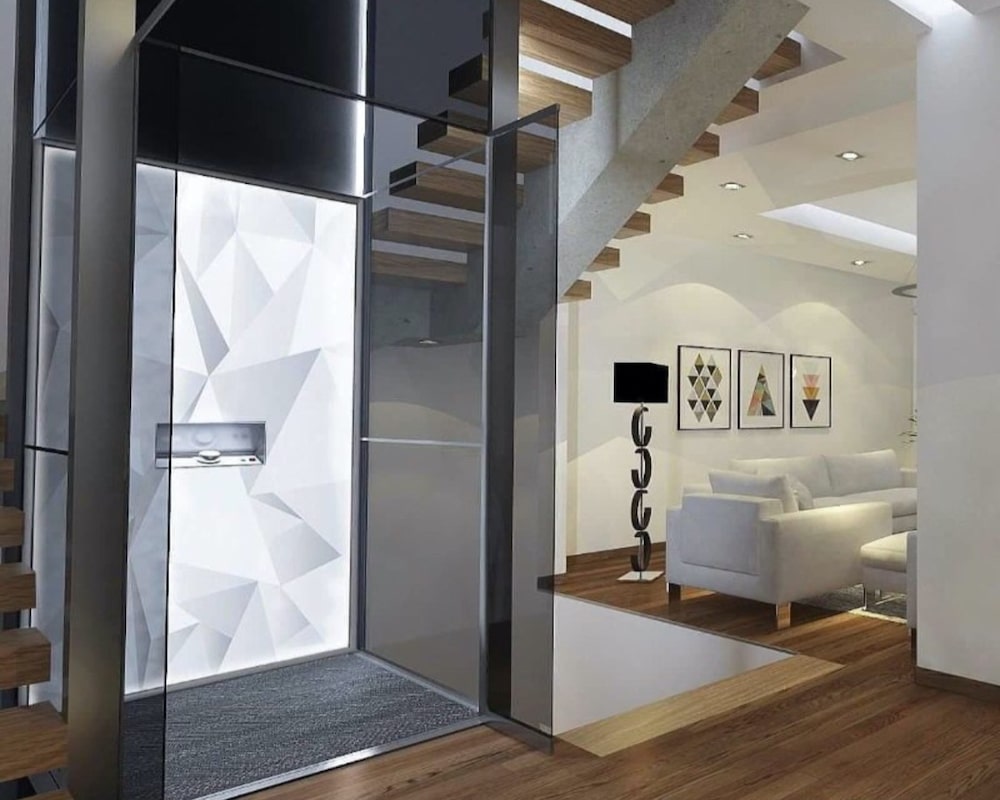

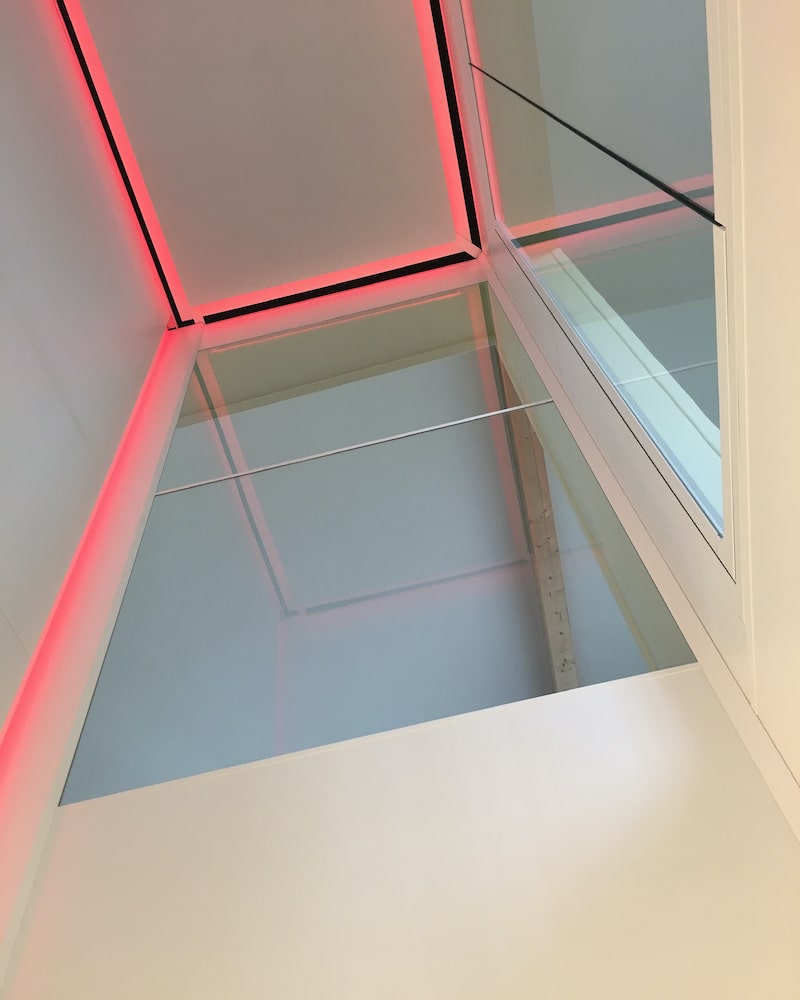

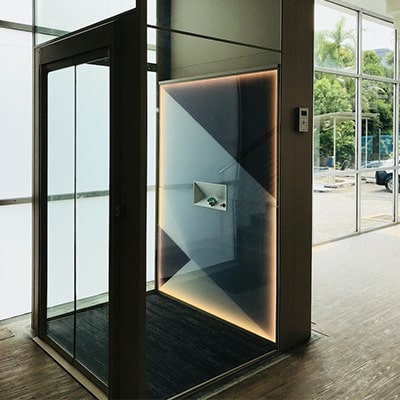

The platform is furnished with a full-height Design Wall featuring various artwork options and a selection of carpets. The lift shaft incorporates hidden LED lighting, with the option to change the colour to suit the atmosphere.

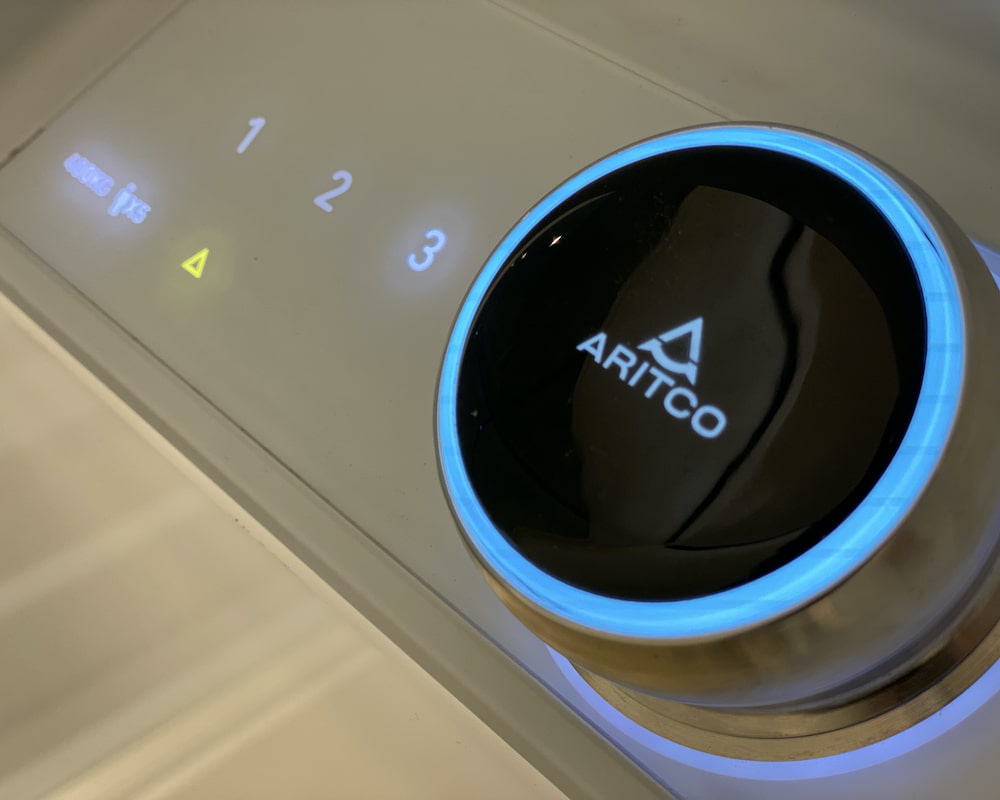

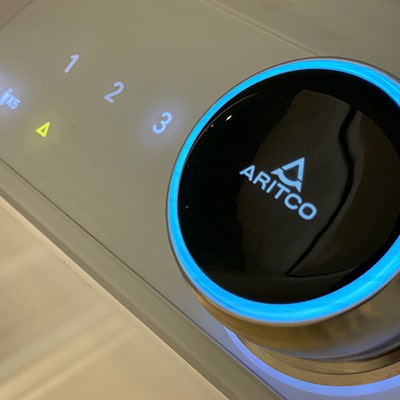

The platform control panel includes Aritco's innovative "SmartControl" – a feature unique to the Aritco HomeLift.
As with all our Aritco platform lift products, the Aritco HomeLift includes a 5-year product warranty and a 10- year warranty on the drive system.
Features:
- 5 & 10 year Warranty (seebelow)
- Can serve up to 6 floors
- 5 platform sizes
- Entrances on 3 sides
- Low headroom and shallow pit
- No external machine room or cabinet required
- Installation time = 3+ days

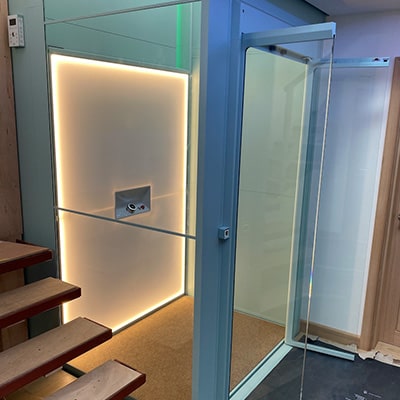

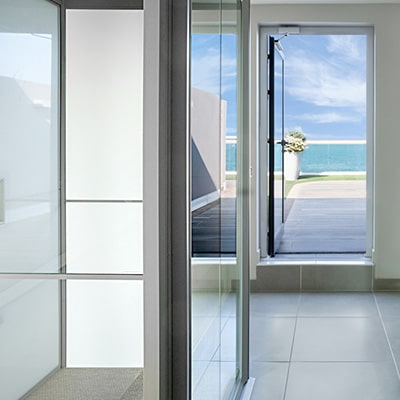

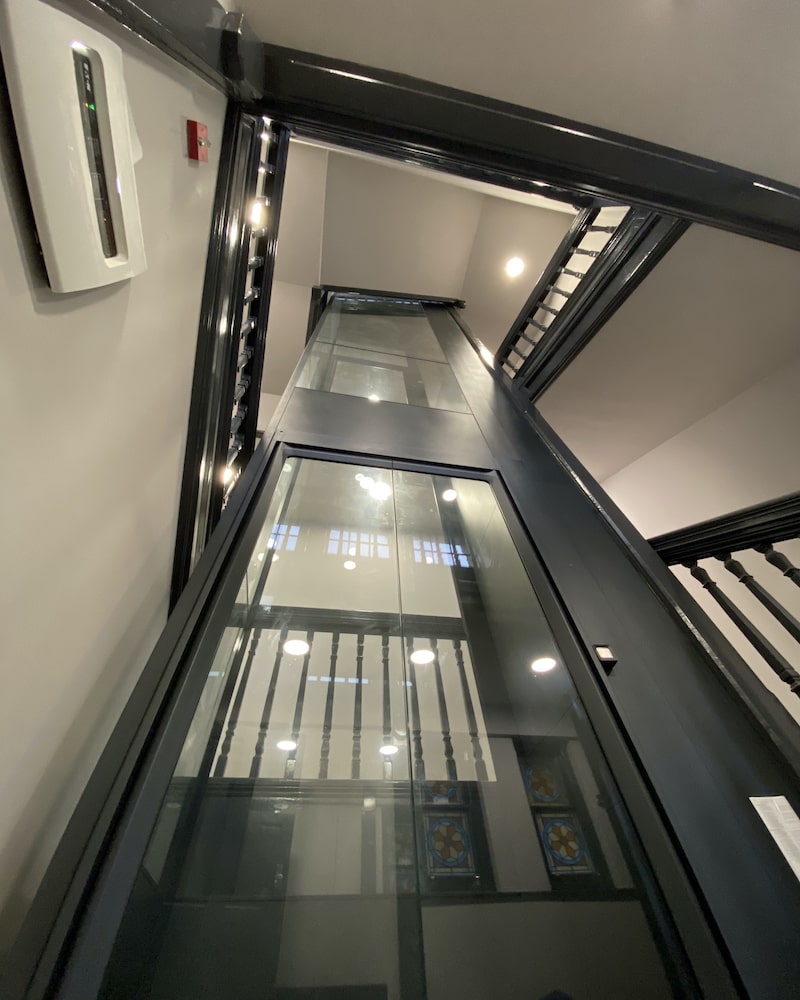

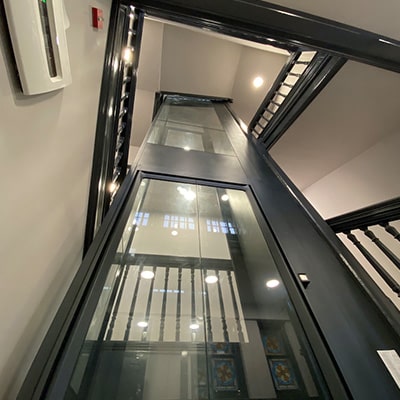

- Lift shaft in solid or glazed (panoramic)
Specifications
- Compliance: European Machine directive 2006/42/EC/ European standard EN81-41
- Lift type: Platform lift intended for private homes. Not for use in buildings with public access
- Rated speed: 0.15m/s
- Drive system: screw and nut
- Travel height: 500mm–15000mm
- Pit depth: 37mm
- Top height: 2225mm-4000mm
- Platform control: "hold to run"
- Emergency lowering: Battery Powered
- Power supply: 230V 1 phase
- Warranty: The lift comes with a 5 year warranty, the screw and nut assembly has a 10 year warranty
Dimensions
| MODEL | PLATFORM SIZE (mm) | APERTURE (mm) | RATED LOAD (kg) | PERSONS |
|---|---|---|---|---|
| S5 | 600 x 830 | 1011 x 910 | 250 | 2 |
| S8 | 1000 x 830 | 1411 x 910 | 250 | 3 |
| S9 | 1100 x 830 | 1511 x 910 | 250 | 3 |
| S12 | 1000 x 1200 | 1411 x 1310 | 400 | 5 |
| S15 | 1100 - 1400 | 1511 x 1510 | 400 | 5 |
Downloads
Download CAD drawings, technical information and data sheets.
Visit DropBoxGallery
