DISCOVER THE ARITCO HOMELIFT ACCESS

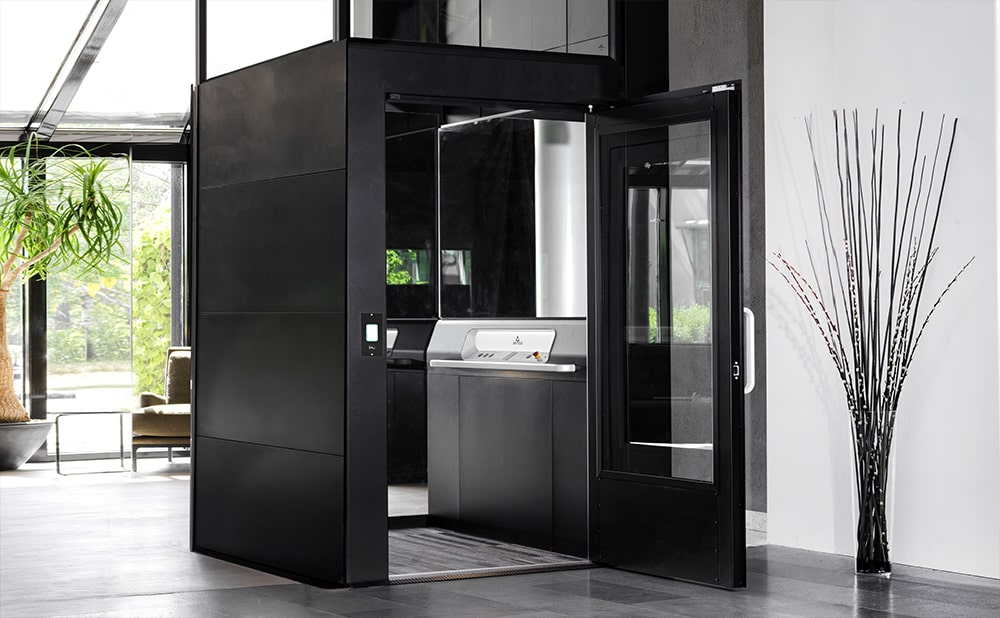

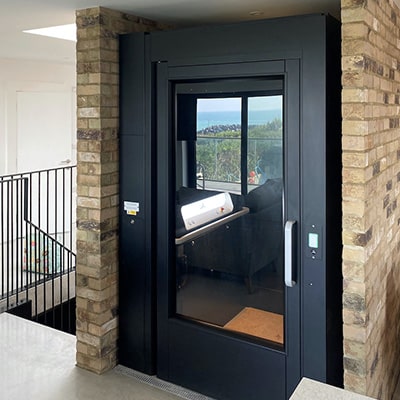

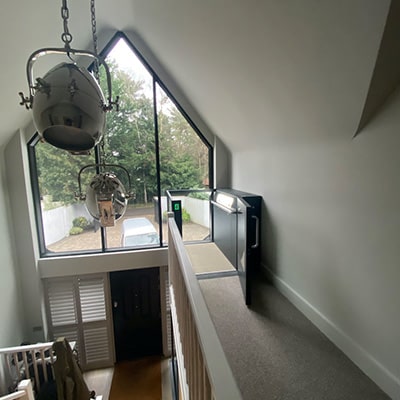

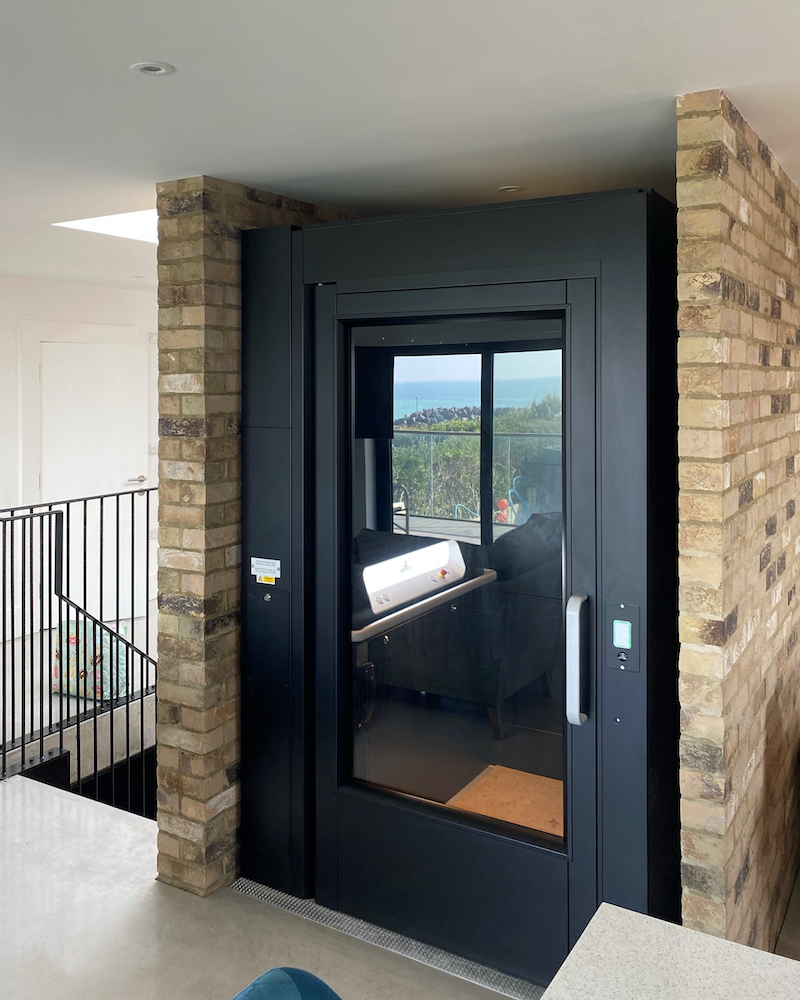

The Aritco HomeLift Access is designed to provide access to all parts of your home for you, your family, and your friends.
Smart and elegant, with sizes to suit all needs, this versatile home lift has Indoor and outdoor options available.
Due to its low power consumption, this energy-efficient lift has minimal operating costs.

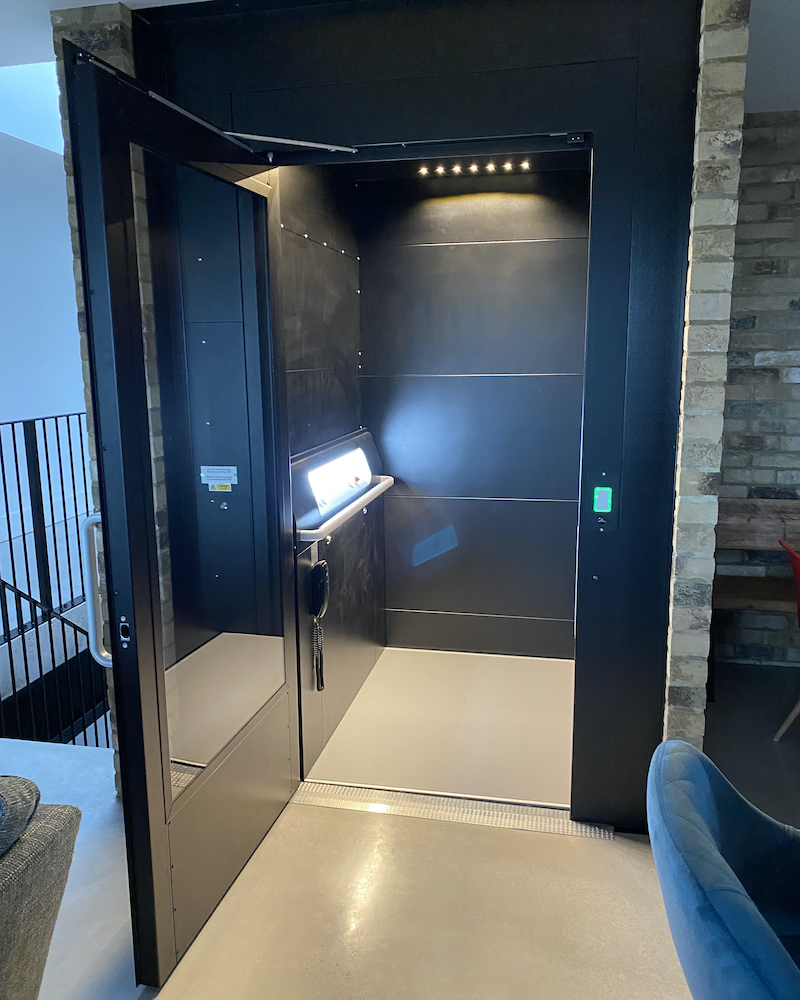

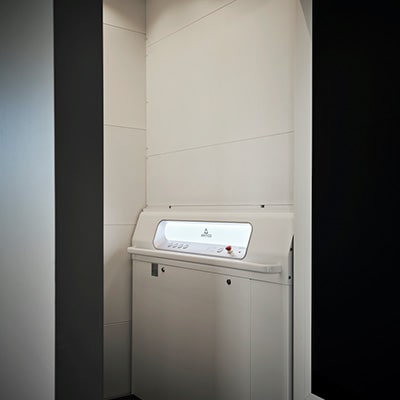

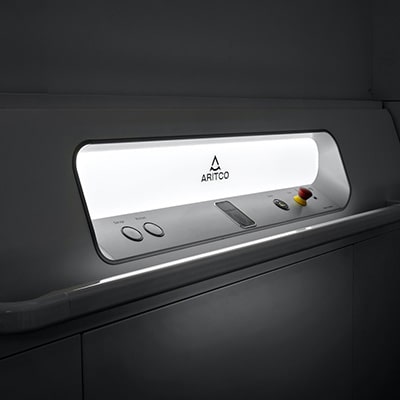

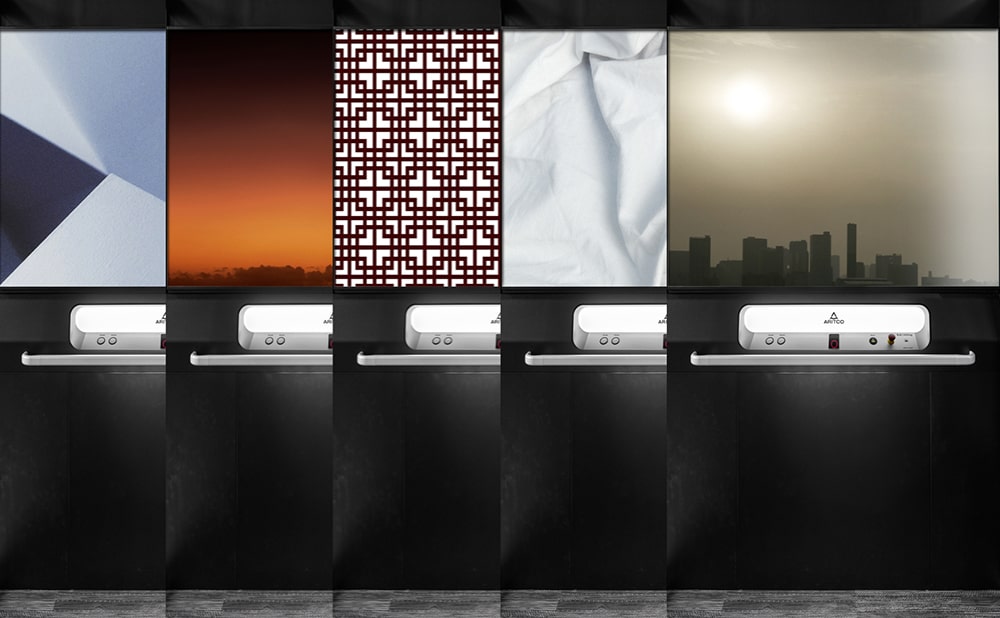

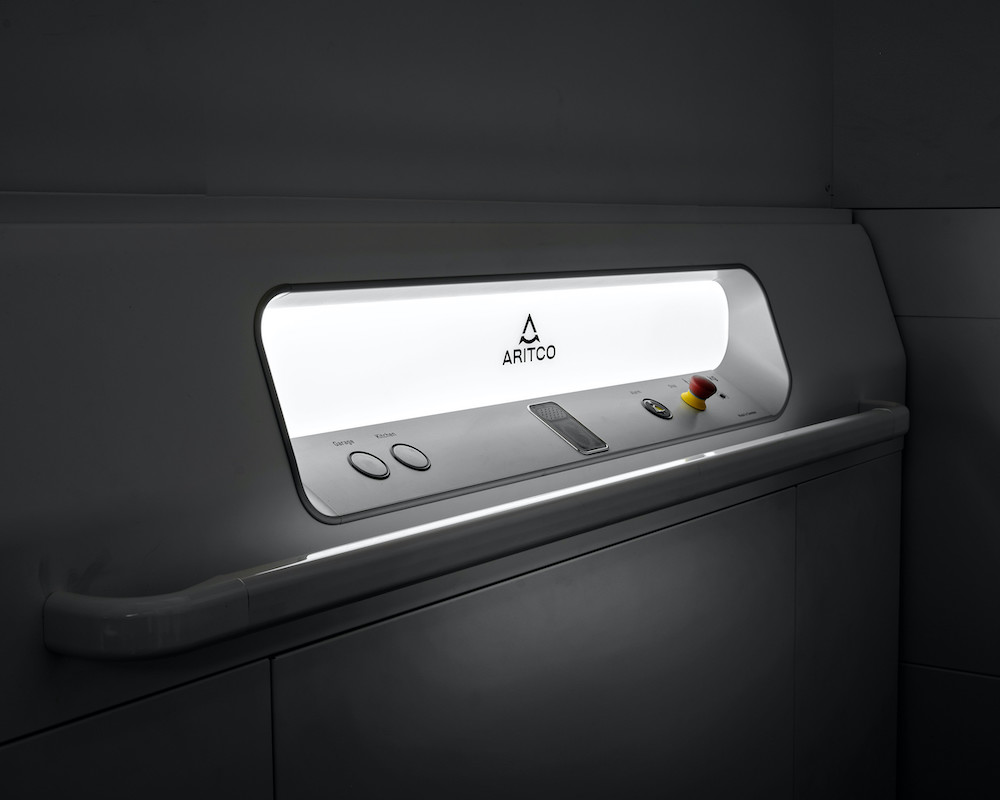

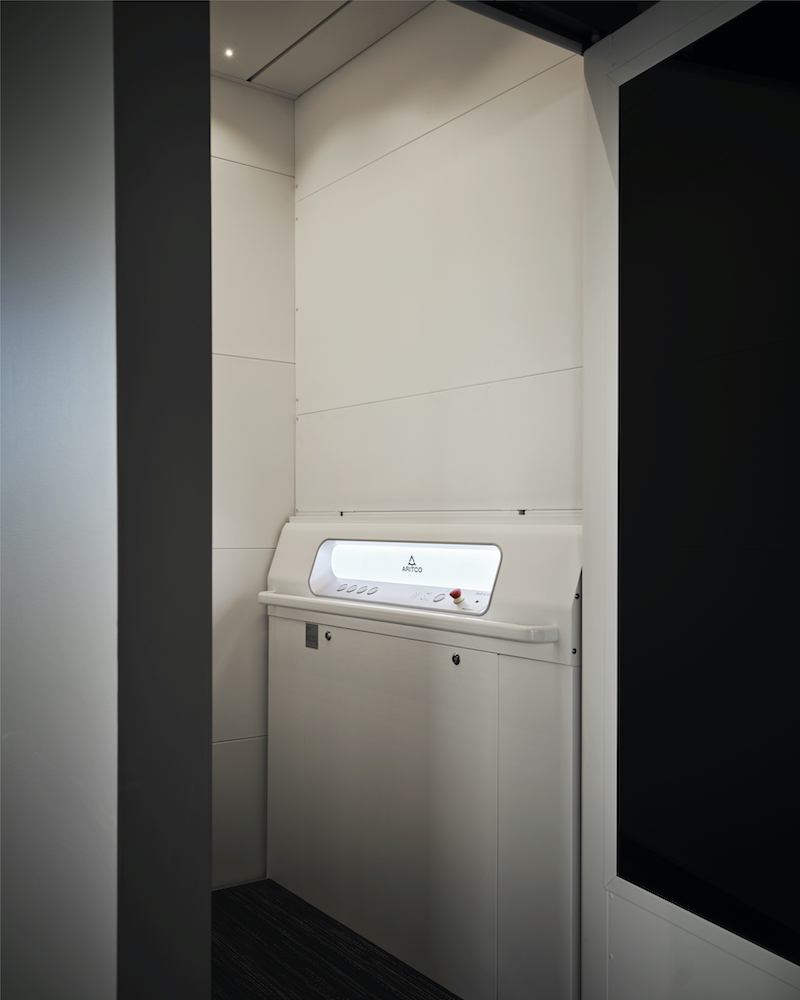

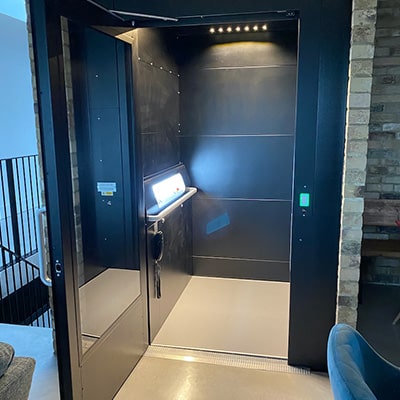

The platform home lift features a backlit panel, an optional full-height platform wall with a mirror or design pattern, and a choice of different flooring materials.
With options including a variety of RAL colours and glass lift shaft walls, the Aritco PublicLift Access platform lift is highly customisable.
Safety features include a battery backup in case of a power failure, an emergency lowering system, and platform safety edges.
Features:
- 5 & 10 year Warranty (seebelow)
- Can serve up to 6 floors
- 8 platform sizes
- Entrances on 3 sides
- Low headroom and shallow pit

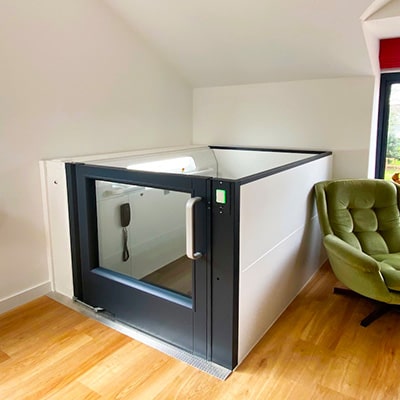

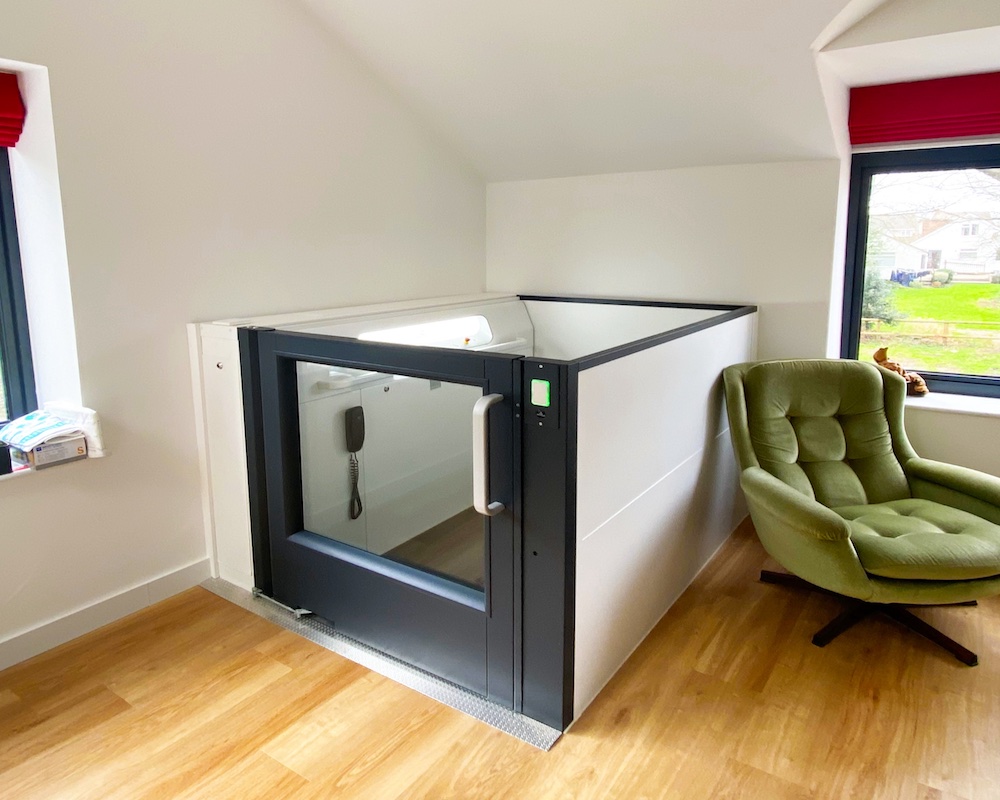

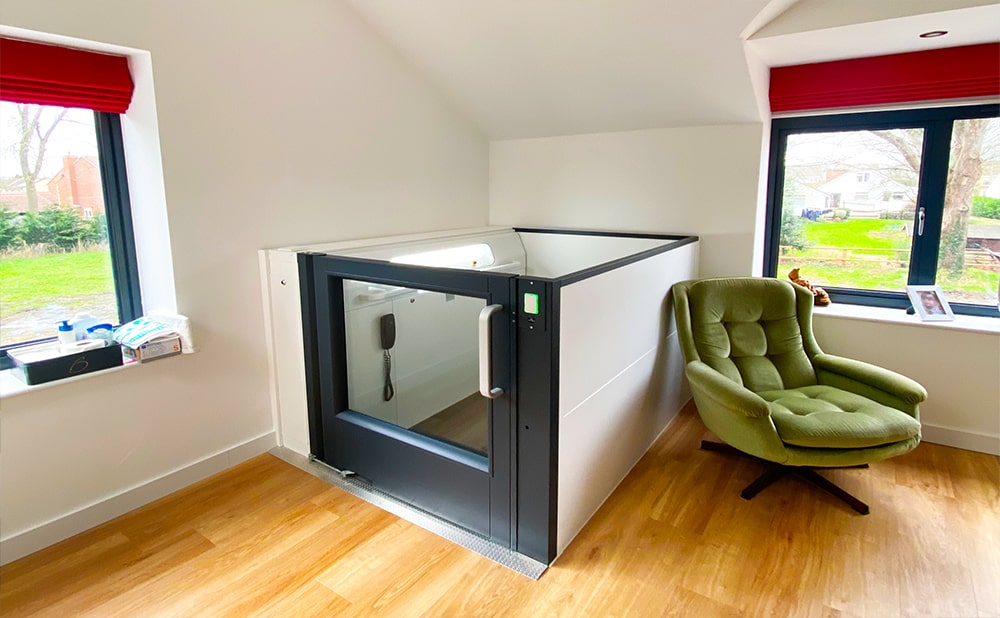

- Half height top door available
- No external machine room or cabinet required
- Installation time = 2+ days

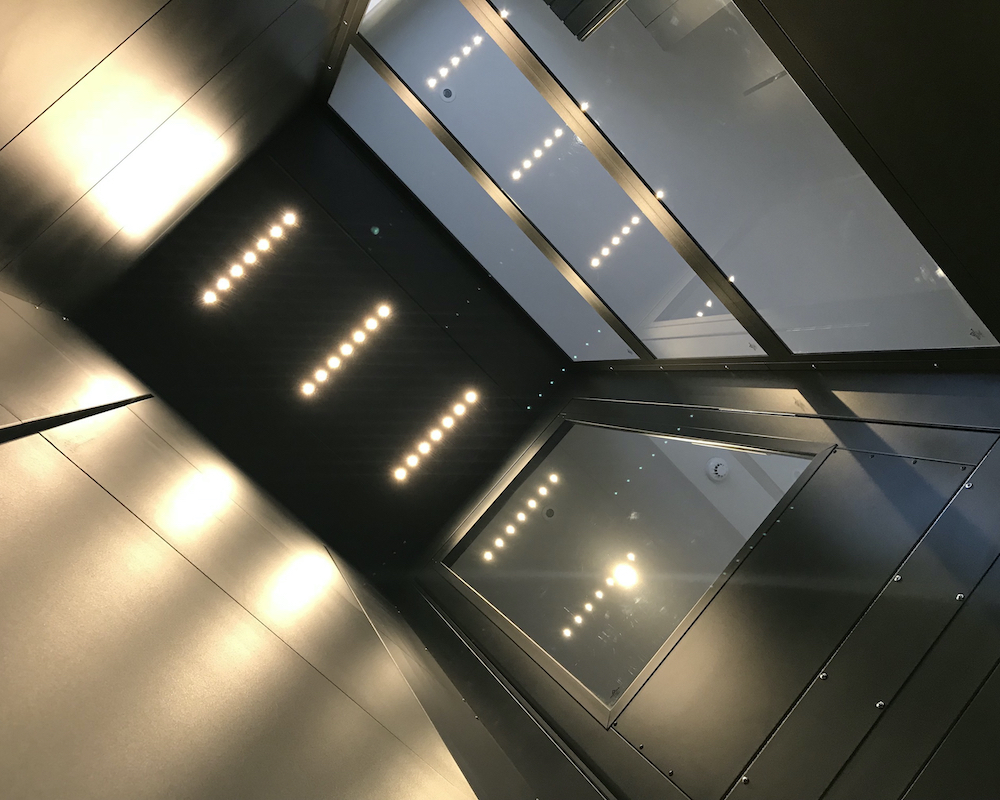

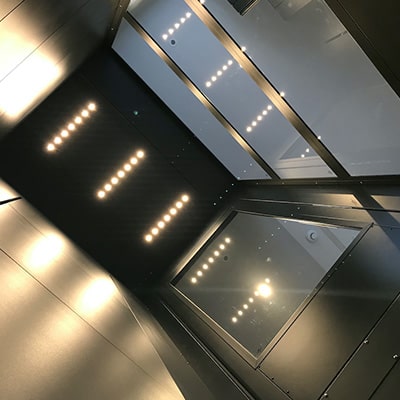

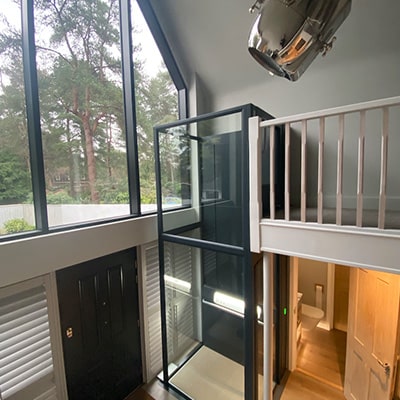

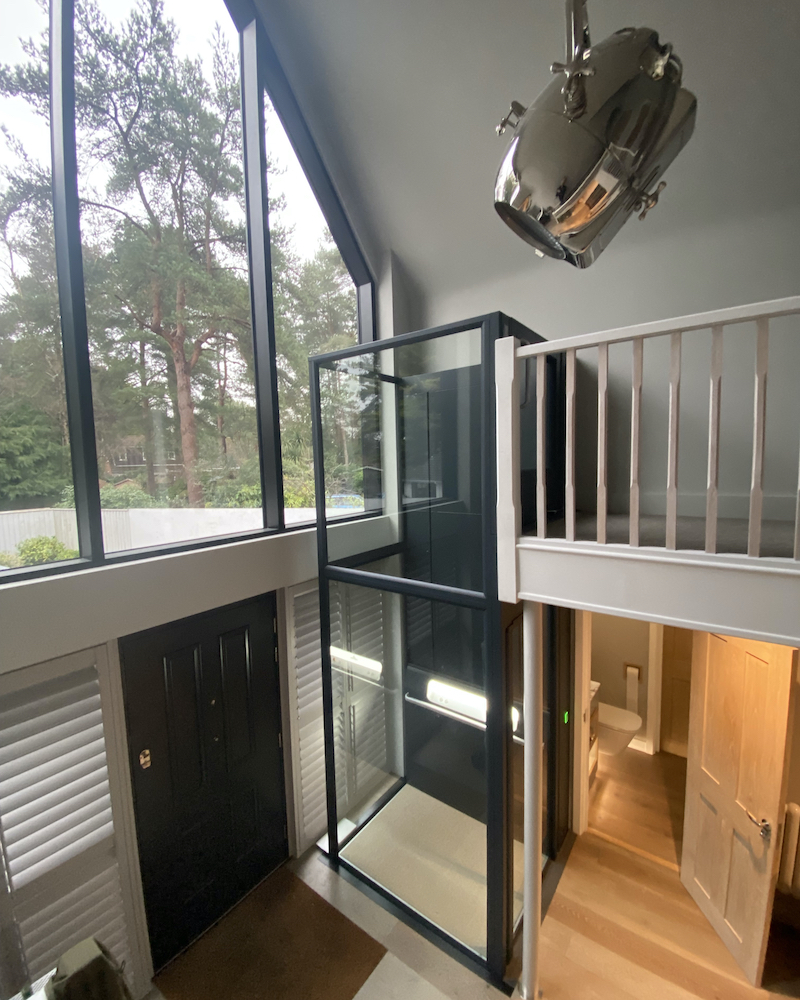

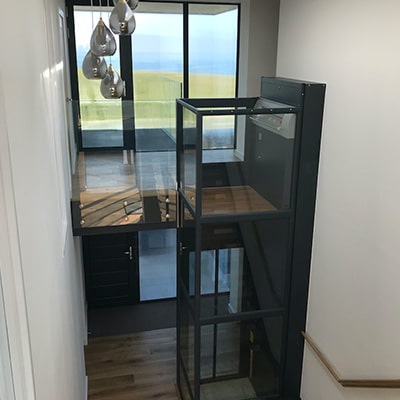

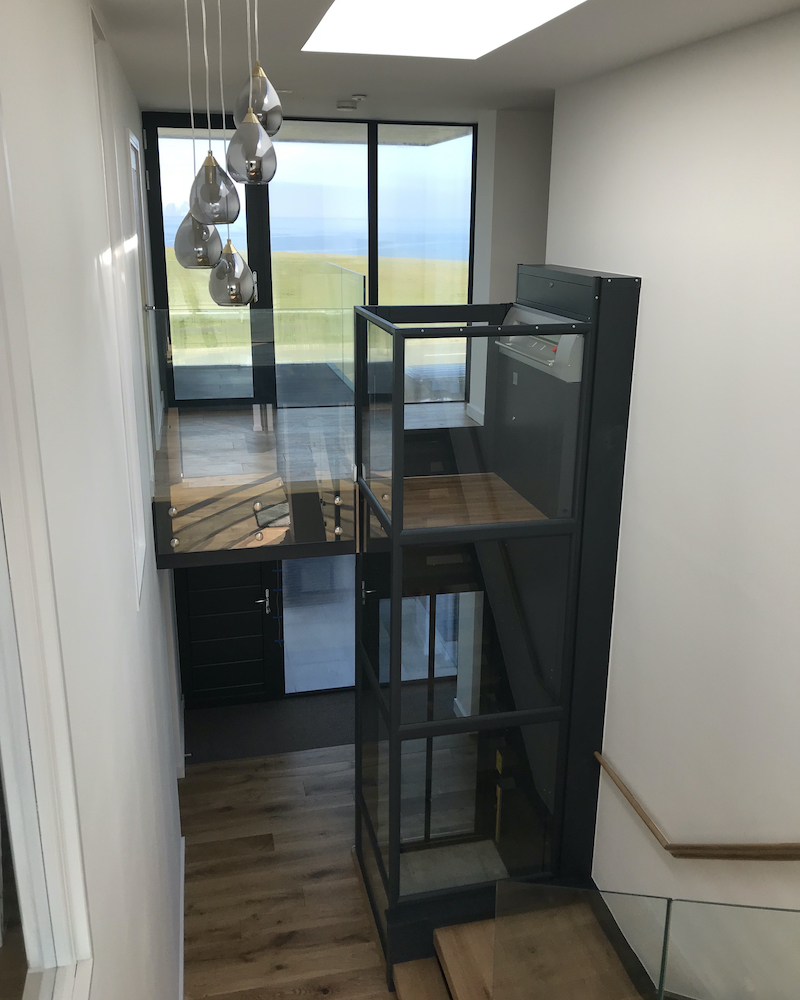

- Lift shaft in solid or glazed (panoramic)
- Outdoor installation available
Specifications
- Compliance: European Machine directive 2006/42/EC / European standard EN81-41
- Lift type: Platform lift intended for private homes. Not for use in buildings with public access
- Rated speed: 0.15m/s
- Drive system: screw and nut
- Travel height: 500mm–13000mm
- Pit depth: 50mm
- Top height: 2240mm
- Platform control: "hold to run"
- Emergency lowering: Battery Powered
- Power supply: 230V 1 phase
- Warranty: The lift comes with a 5 year warranty, the screw and nut assembly has a 10 year warranty
Dimensions
| PLATFORM SIZE (mm) | APERTURE (mm) | RATED LOAD (kg) | PERSONS | WHEELCHAIR |
|---|---|---|---|---|
| 900 x 1040 | 1305 x 1190 | 250 | 2 | - |
| 900 x 1280 | 1305 x 1430 | 410 | 5 | Lone user or type A |
| 900 x 1480 | 1305 x 1630 | 410 | 5 | A or B with attendent |
| 1000 x 1280 | 1405 x 1430 | 410 | 5 | Lone user or type A |
| 1000 x 1480 | 1405 x 1630 | 410 | 5, 6 | A or B with attendent |
| 1100 x 1480 | 1505 x 1630 | 410 | 5, 6 | A or B with atten- dent, adjacent entry |
| 1100 x 1580 | 1505 x 1730 | 500 | 6 | A or B with atten- dent, adjacent entry |
| 1000 x 1980 | 1405 x 2130 | 500 | 6 | A or B with attendent |
Downloads
Download CAD drawings, technical information and data sheets.
Visit DropBoxGallery
