DISCOVER THE ARITCO HOMELIFT COMPACT
The Aritco HomeLift Compact is the most compact and space-efficient lift in our range, able to fit in almost any house, even where space is limited.
With three platform sizes, this home lift can be configured to accommodate a small standard wheelchair or carry two passengers.
As with all our Aritco platform lift products, the HomeLift Compact comes with a 5-year product warranty and a 10-year warranty on the drive system.

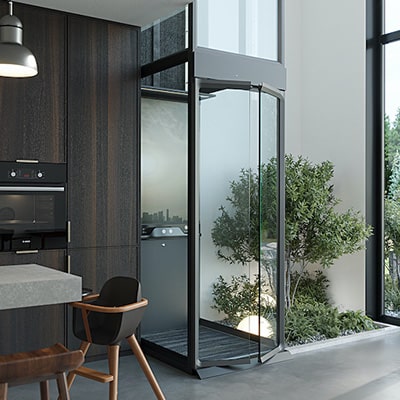

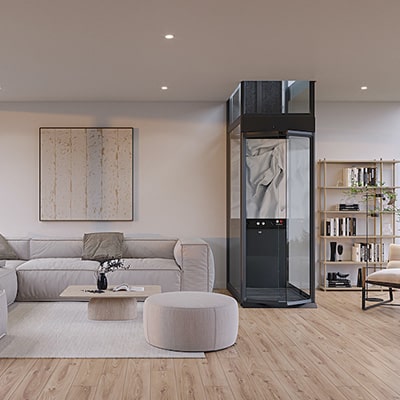

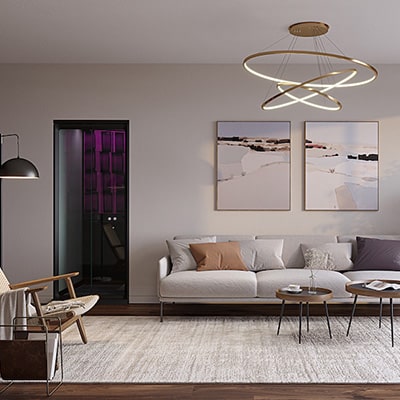

With its own self-contained shaft enclosure, this home lift can be retrofitted into existing homes as well as installed in new builds.

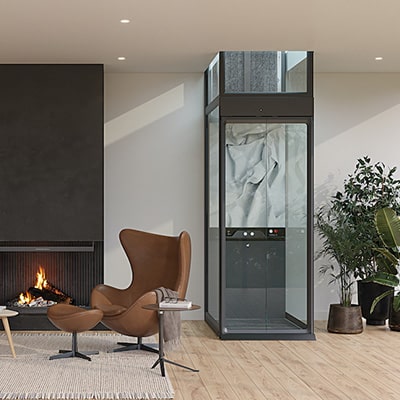

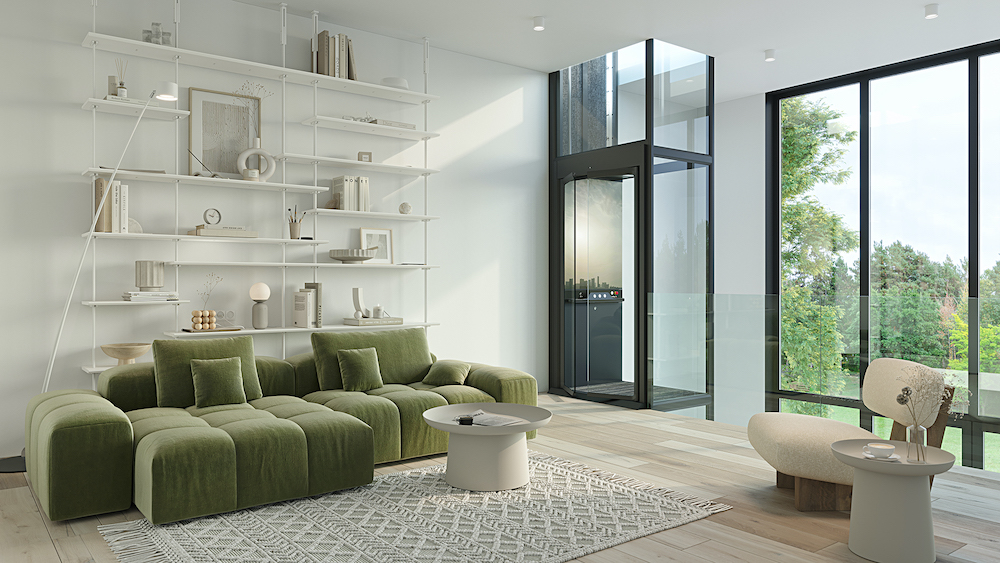

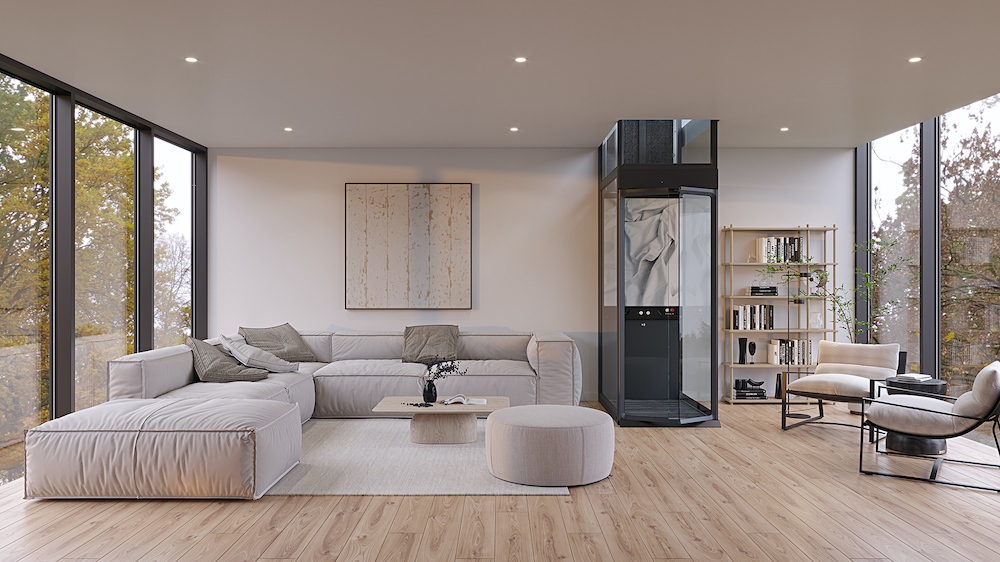

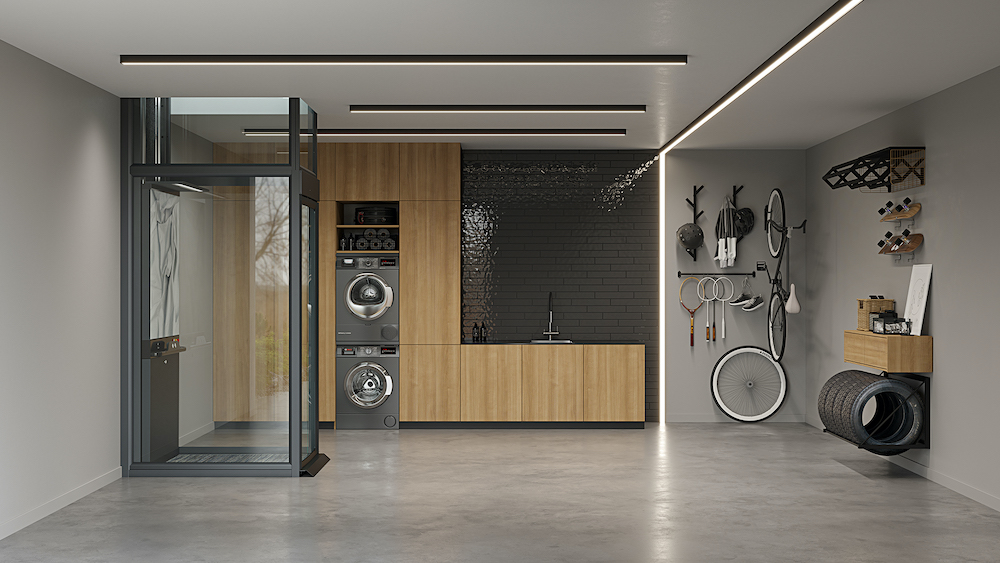

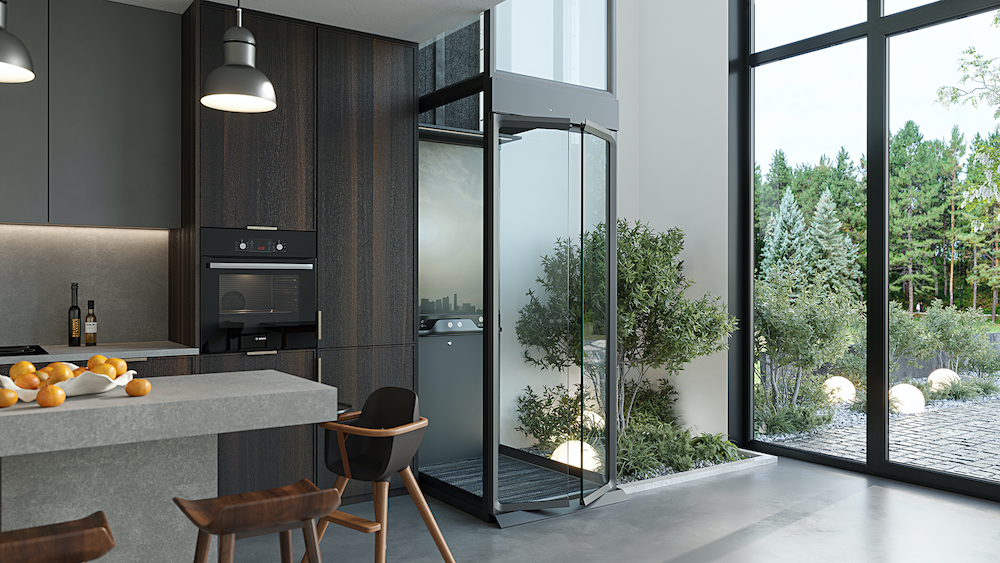

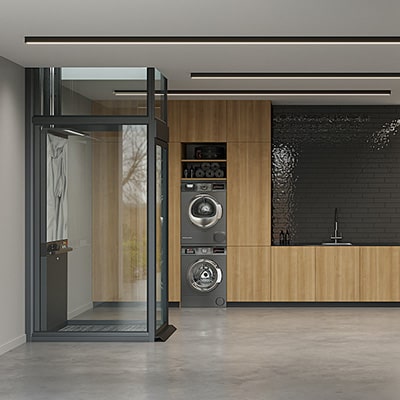

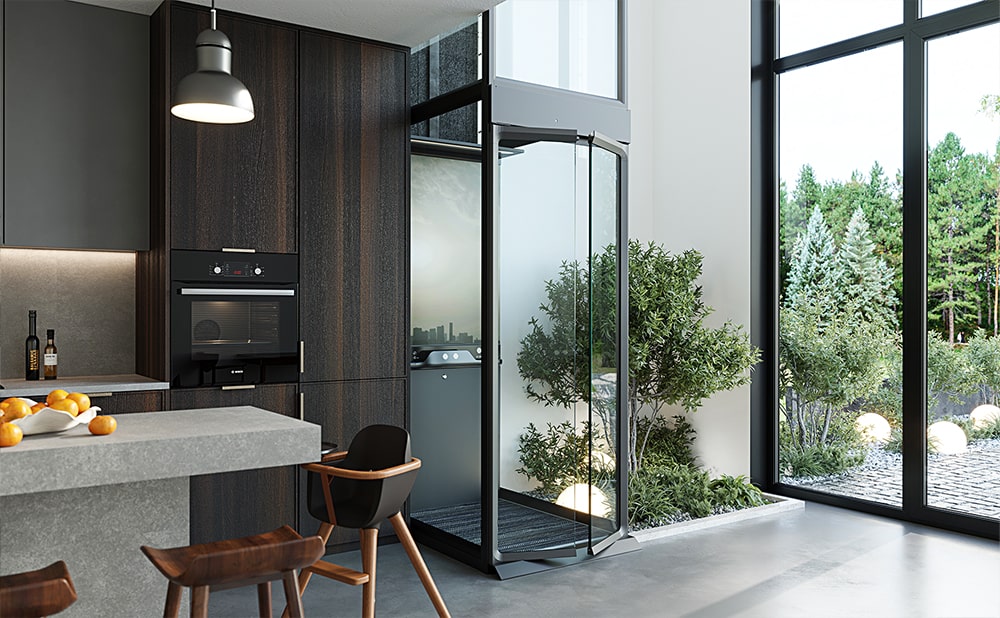

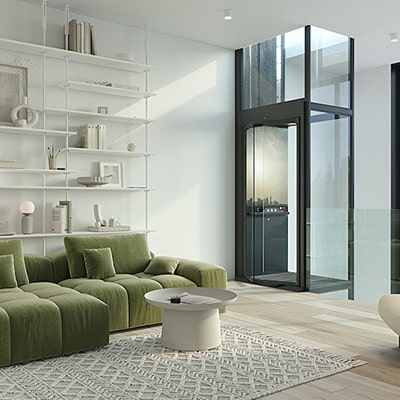

The shaft walls can be glazed for a panoramic view and painted in a variety of RAL colours.

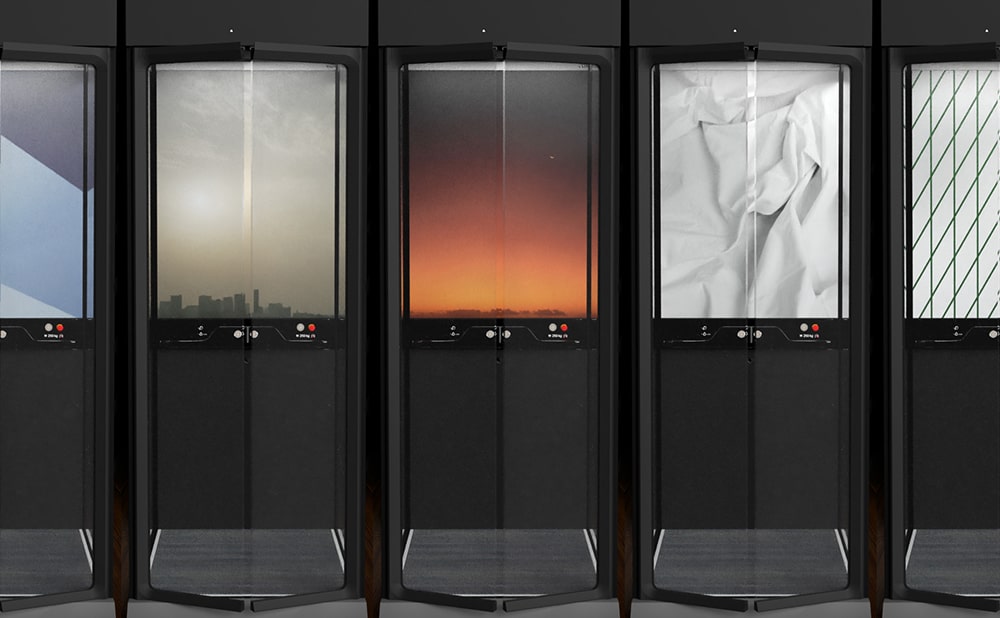

The platform includes a full-height wall with a mirror as standard, with customisation options including Design Walls and a choice of different flooring materials.
Features:
- 5 & 10 year Warranty (see below)
- Can serve up to 6 floors
- 3 platform sizes
- Entrances on 3 sides
- Low headroom and shallow pit
- No external machine room or cabinet required
- Installation time = 2 + days
- Lift shaft in solid or glazed (panoramic)
Specifications
- Compliance: European Machine directive 2006/42/EC / European standard EN 81-41
- Lift type: Platform lift intended for private homes. Not for use in buildings with public access
- Rated speed: 0.15m/s
- Drive system: screw and nut
- Travel height: 1600mm - 15000mm
- Pit depth: 50mm
- Top height: 2248mm

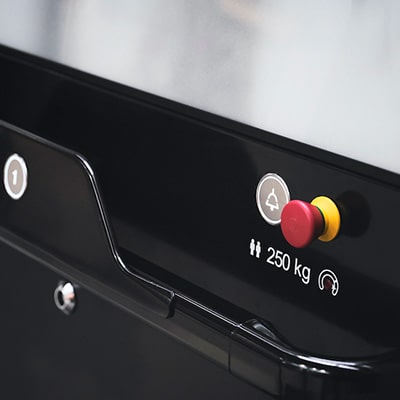

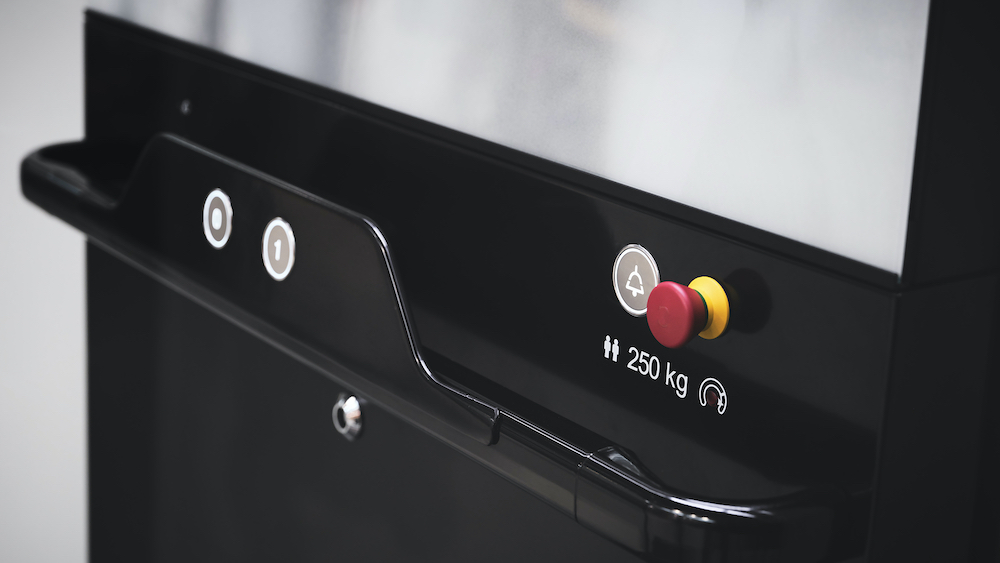

- Platform control: "hold to run"
- Emergency lowering: Battery Powered
- Power supply: 230V 1 phase
- Warranty: The lift comes with a 5 year warranty, the screw and nut assembly has a 10 year warranty
Dimensions
| MODEL | PLATFORM SIZE (mm) | APERTURE (mm) | RATED LOAD (kg) | PERSONS |
|---|---|---|---|---|
| 1 | 805 x 1080 | 910x870 | 250 | 2 |
| 2 | 805 x 880 | 910x1070 | 250 | 2 |
| 3 | 805 x 1080 | 910x1370 | 250 | 2 |
Downloads
Download CAD drawings, technical information and data sheets.
Visit DropBoxGallery
WHY CHOOSE PLATINUM LIFTS
Certified Aritco Partner
Platinum Lifts are proud to be exclusively partnered with Aritco, the Scandinavian award-winning platform lift manufacturer. Aritco have earned a worldwide reputation as a leading producer of innovative and reliable platform lifts.
5 Year Warranty
All our Lifts are covered by a 5 Year Warranty, with a 10 Year Warranty on the screw and nut drive. Testament to the confidence Aritco have in the quality of their home and platform lift products.
Swedish Quality
Our vision has always been to supply reliable home and commercial platform lifts that are elegant, functional, and reliable - the reason why we chose to focus 100% of our business on Aritco Lifts.
Backup Power
All Aritco platform lifts are equipped with a dedicated battery back-up rescue system, so in the event of a power cut the lift will return to the nearest floor and release the passengers.
Quick Installation
Aritco lifts are designed for quick and hassle-free installation, ensuring you'll experience minimal disruption, whether in your home or workplace. Our engineers are some of the best Aritco specialists in the country.
Aftercare
Following all lift installations, our extensive aftercare support, coupled with a robust warranty, ensures a complete piece-of-mind after sales support service, for years to come
Visit Our Lift Showroom
Whether you require space-saving home lifts designed to seamlessly integrate with your living spaces or public lifts that guarantee reliability and durability, our expertise covers it all.
Want to learn more? Our brochures showcase the different models we specialise in. However, the best way to truly appreciate the quality and versatility of our platform lifts is to visit our showroom in Bristol, where you can experience our platform lift solutions firsthand, gaining a genuine understanding of their features and capabilities. Or give us a call at 0117 261 0123 for more information.
