VERTICAL TRANSPORT FOR PASSENGERS AND GOODS

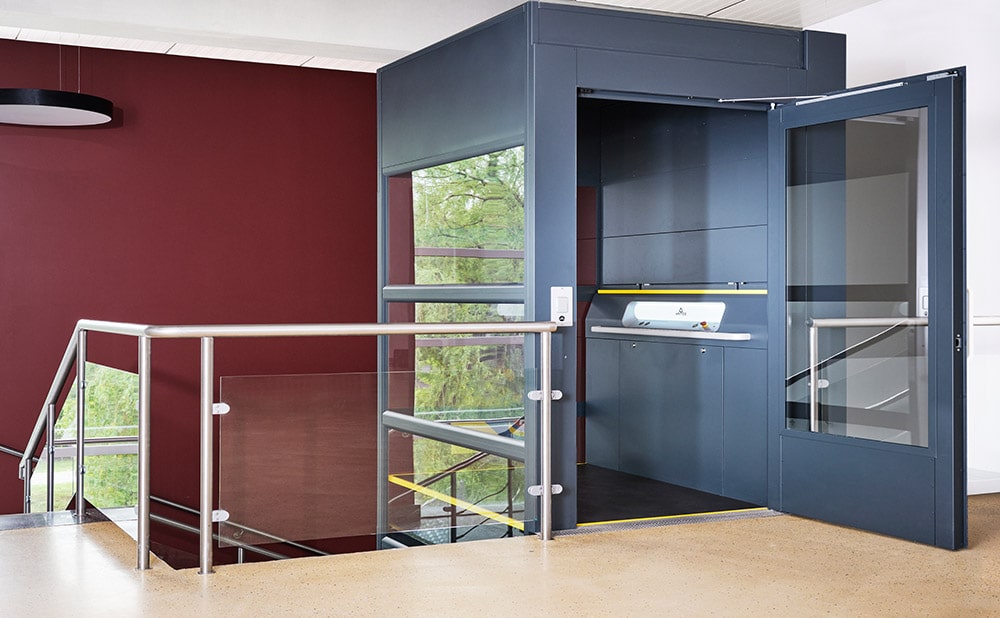

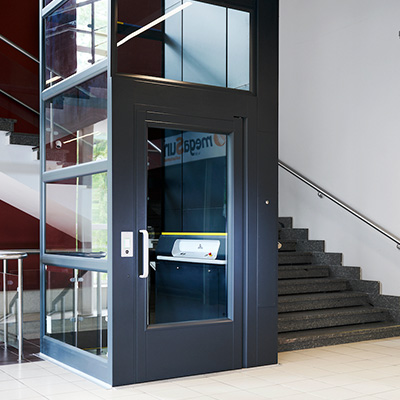

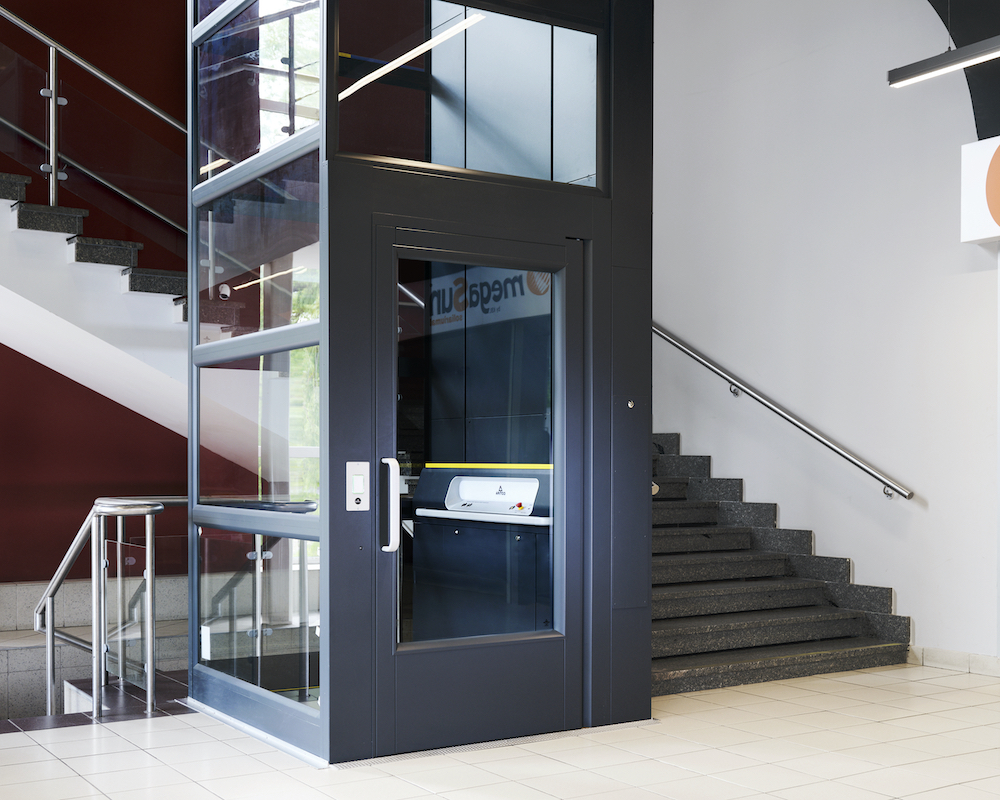

The Aritco PublicLift Access Goods Option features safety measures suitable for passengers and light goods.

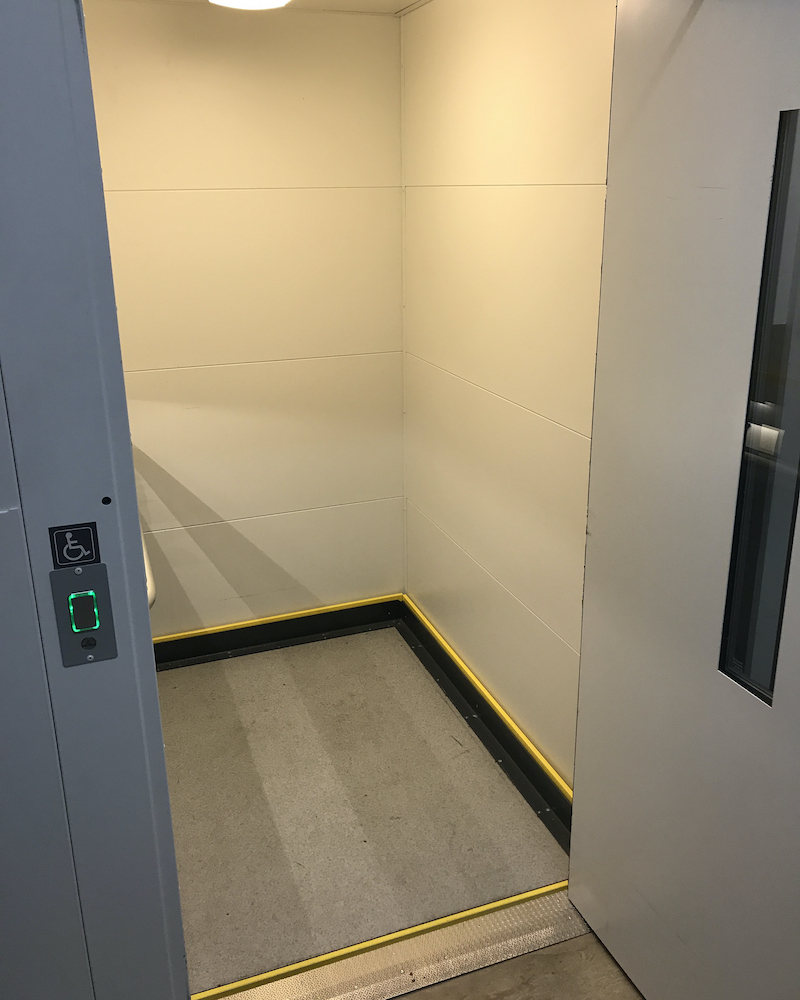

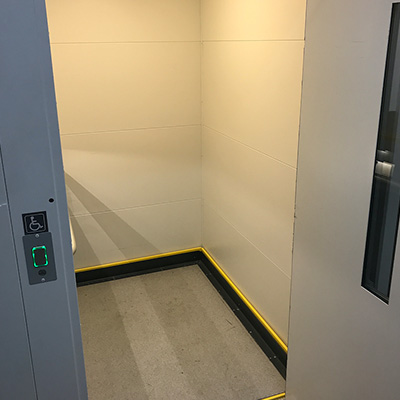

This sturdy platform lift can be upgraded to handle up to 500kg, with a safety kerb for trolleys and goods.
Like all Aritco lifts, this platform lift is self-contained, with machinery within the lift shaft, eliminating the need for a separate machine room.

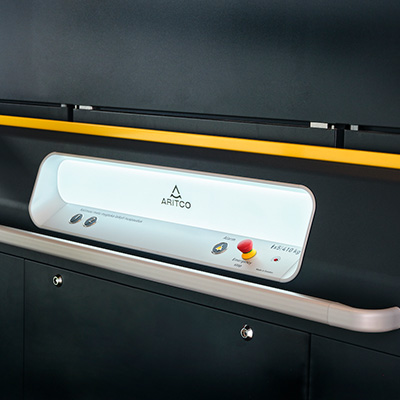

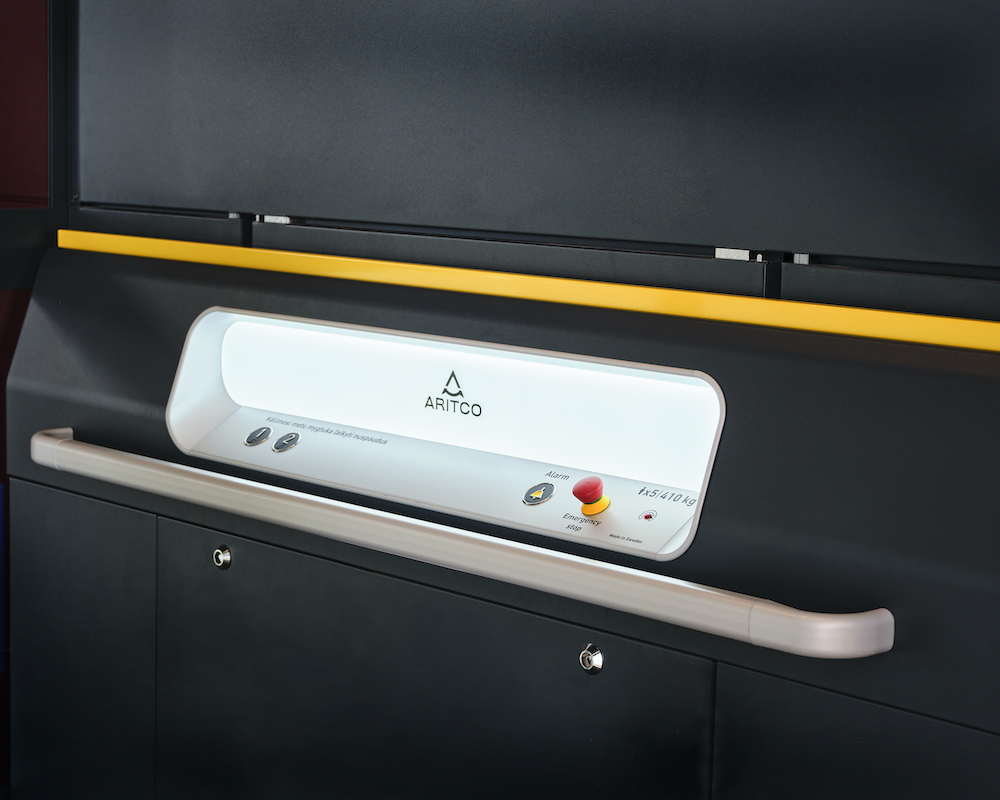

Designed in Scandinavian style, the platform includes features like a backlit panel and illuminated handrail.

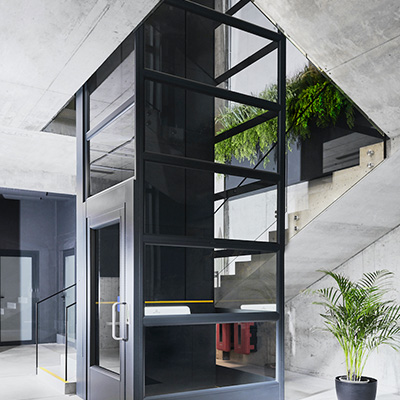

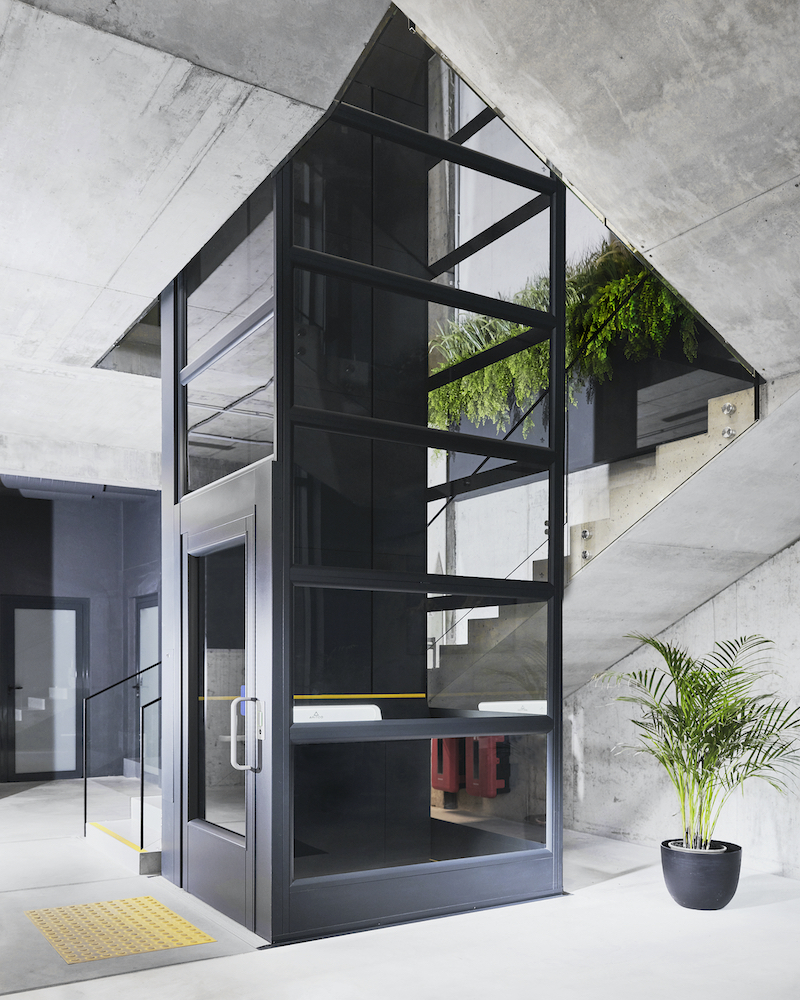

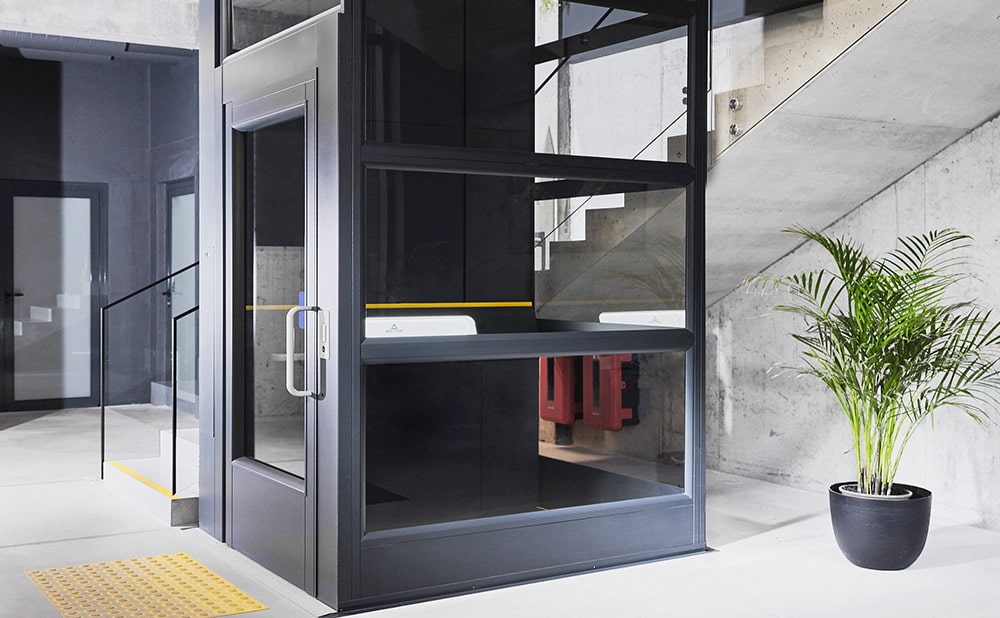

Customisation options include glass shaft walls and various colours, ensuring practicality and style.
So if your business or public building has inadequate freedom of access, the Aritco PublicLift Access Goods could be the solution.
Features:
Specifications
- Compliance: European Machine directive 2006/42/EC / European standard EN 81-41
- Lift type: Platform lift intended for use in public & commercial environment
- Rated speed: 0.15m/s
- Drive system: screw and nut
- Travel height: 500mm – 13000mm
- Pit depth: 50mm
- Top height: 2300mm
- Platform control: "hold to run"
- Emergency lowering: Battery Powered
- Power supply: 230V 1 phase, 415V 3 phase
- Warranty: The lift comes with a 5 year warranty, the screw and nut assembly has a 10 year warranty
Dimensions
| PLATFORM SIZE (mm) | APERTURE (mm) | RATED LOAD (kg) | PERSONS | WHEELCHAIR |
|---|---|---|---|---|
| 900 x 1040 | 1305 x 1190 | 250 | 2 | - |
| 900 x 1280 | 1305 x 1430 | 410 | 5 | Lone user or type A |
| 900 x 1480 | 1305 x 1630 | 410 | 5 | A or B with attendent |
| 1000 x 1280 | 1405 x 1430 | 410 | 5 | Lone user or type A |
| 1000 x 1480 | 1405 x 1630 | 410 | 5 | A or B with attendent |
| 1100 x 1480 | 1505 x 1630 | 410 | 5 | A or B with atten- dent, adjacent entry |
| 1100 x 1580 | 1505 x 1730 | 500 | 6 | A or B with atten- dent, adjacent entry |
| 1000 x 1980 | 1405 x 2130 | 500 | 6 | A or B with attendent |
Downloads
Download CAD drawings, technical information and data sheets.
Visit DropBoxGallery
